Solar PV DC Cables (TÜV/UL)Premium

UL4703 Photovoltaic Cable Solar PV DC Wire 2000V

· Temperature Resistance: Delivers consistent operation in both hot and cold environments. · UV & Weather Resistance: Designed to withstand prolonged UV exposure and severe weather elements. · Standards Compliant: Complies with UL and TUV standards to ensure top-quality reliability. · Long-lasting: Offers exceptional longevity with minimal upkeep requirements.

Contact Us
Application
Photovoltaic (PV) cables are specially designed for solar power systems, widely used for power transmission between solar panels, inverters, combiner boxes, and the grid. They offer excellent resistance to high temperatures, UV radiation, aging, and corrosion, ensuring reliable performance in harsh outdoor environments. PV cables are suitable for utility-scale ground-mounted solar farms, commercial and industrial rooftop systems, distributed PV installations, and agrivoltaic projects. As a critical component in photovoltaic systems, they guarantee safe, efficient, and long-term energy transmission

Structure
Conductor: Tinned copper, compliant with IEC 60228, Class 5
Insulation: Low-smoke, halogen-free, flame-retardant irradiated polyolefin
Outer Sheath: Low-smoke, halogen-free, flame-retardant irradiated polyolefin
Sheath Color: Black/Red


Characteristic

Rated voltage
DC 1.5KV / AC 0.6/1KV
Test voltage
6000V
Operating temperature
-40℃~125℃
Short circuit temperature
280℃ 5s
Bending radius
D＜8mm 4D; D≥8mm 6D
Service life
≥25 Years
Standard
UL 4703
Certification
TUV /EN/UL/CQC
Solar Cable Specification (UL 4703 PV-Wire)
Spec
Construction
Voltage V
Insulation
Sheath
Outer
Weight
Thickness
Thickness
Diameter
mm
mm
mm
kg/km
1x14AWG
361/0.3
1000/2000V
1.05
0.76
5.51
44.5
1x12AWG
525/0.3
1000/2000V
1.05
0.76
6.04
59.8
1x10AWG
720/0.3
1000/2000V
1.05
0.76
6.74
84.6
1x8AWG
988/0.3
1000/2000V
1.25
0.76
7.92
124.4
1x6AWG
1349/0.3
1000/2000V
1.25
1.14
9.68
191.0聽
1x4AWG
1691/0.3
1000/2000V
1.25
1.14
10.89
271.4

Certification
Our solar cables have obtained multiple international certifications, including TUV, EN, UL, CE and CQC, ensuring compliance with various market regulations worldwide. These certifications attest to the durability, efficiency, and long-term stability of our cables, making them suitable for various photovoltaic applications, from residential solar panels to large-scale solar farms.

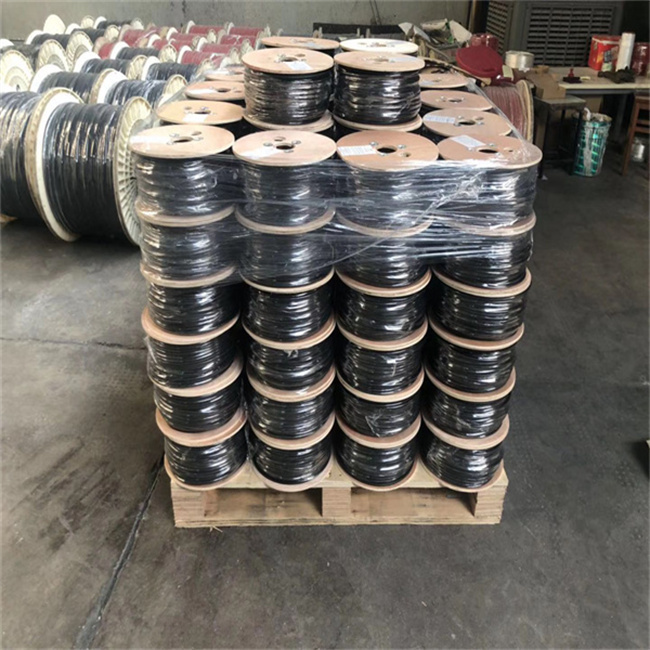

Packing
The regular packaging includes rolls of 100 meters, 200 meters, 500 meters, 1000 meters, and 3000 meters. Customers can choose the most suitable packaging size based on their project requirements.
