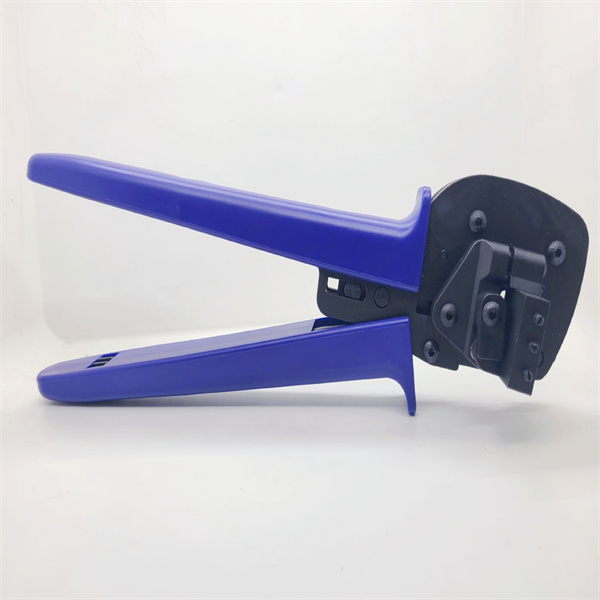

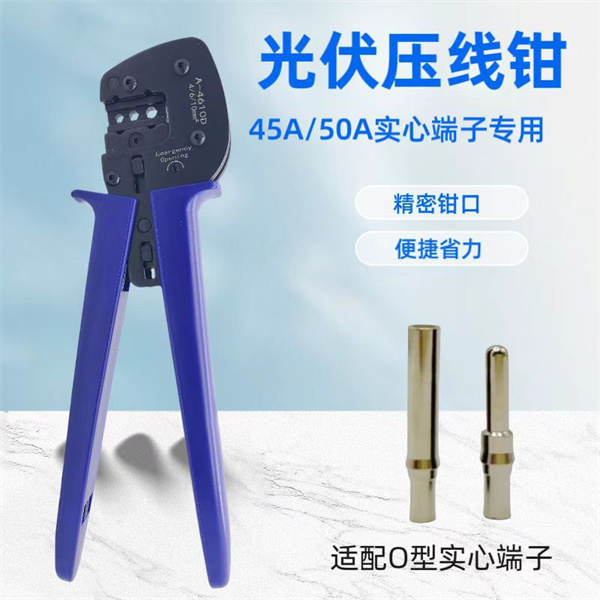

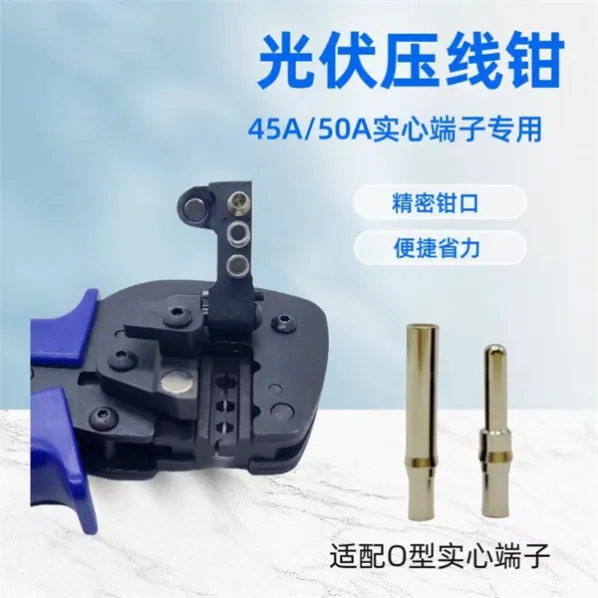

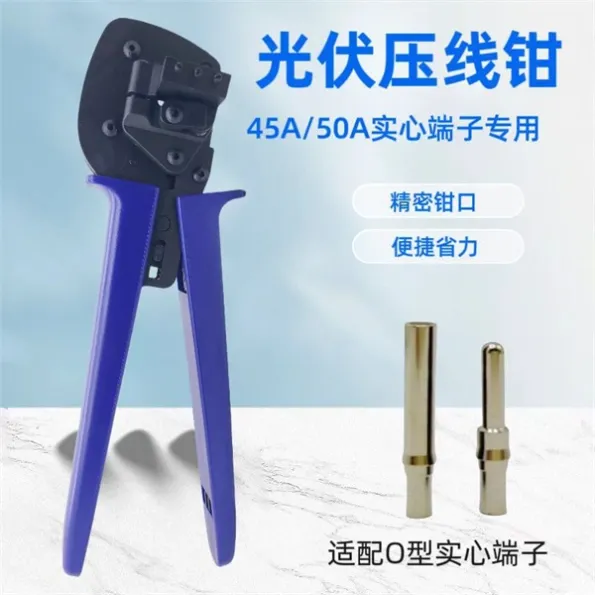

The tool shown is a ratcheting solar crimping tool, specifically model A-4610D. It is designed for terminating cables used in solar photovoltaic (PV) systems, particularly for MC4 connectors.
Key Specifications
Crimping Capacity:
This model is designed for three wire cross-sections: 4mm², 6mm², and 10mm²
.AWG Range: Corresponds roughly to 12-8 AWG.
Mechanism:
Features a precision ratchet mechanism that ensures the tool does not release until a complete crimp has been made, providing consistent high-quality connections.
Emergency Opening:

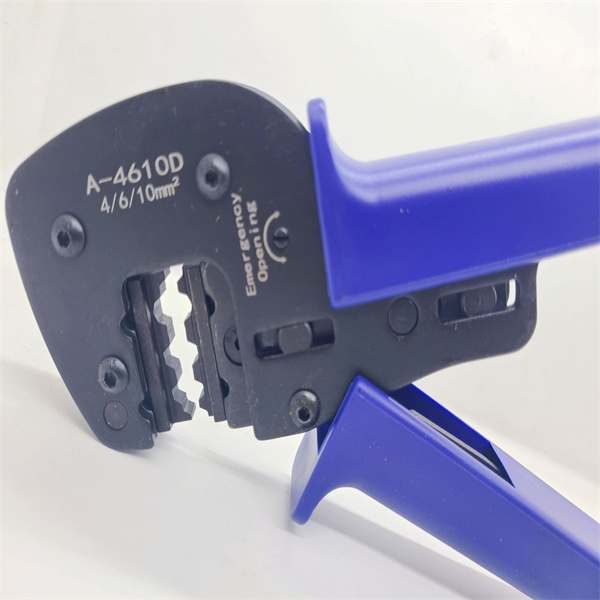

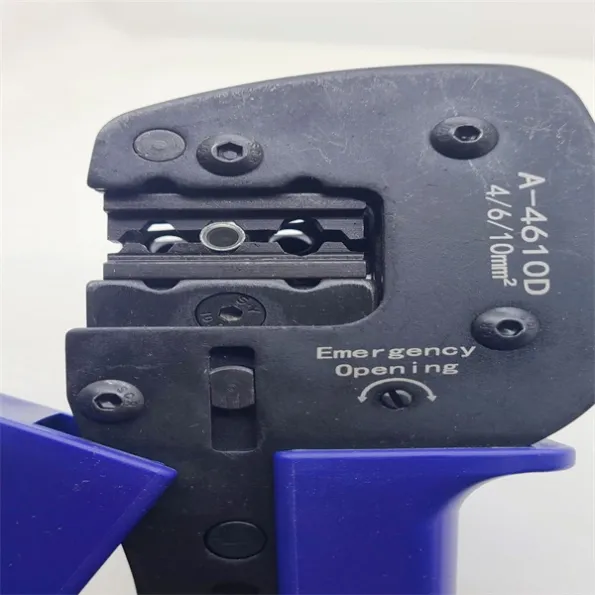

The tool includes an "Emergency Opening" feature (visible in the image) to manually release the ratchet if the tool becomes stuck or needs to be opened mid-cycle.
