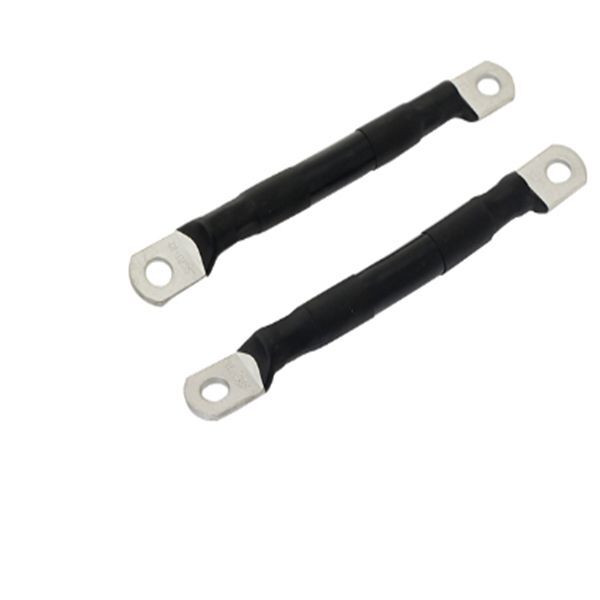

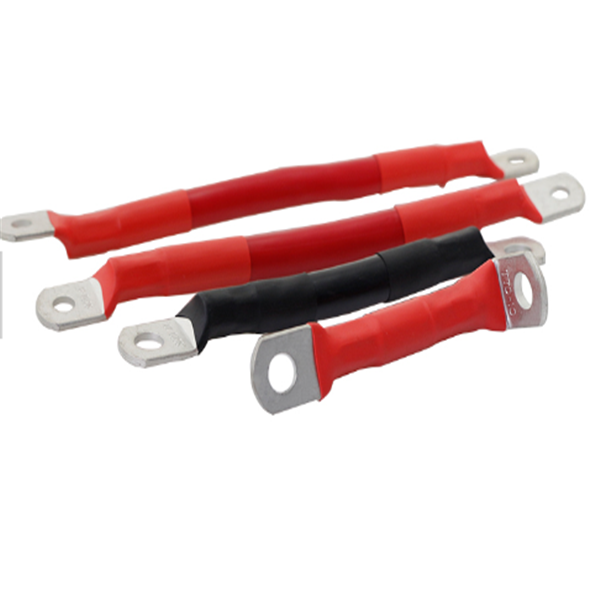

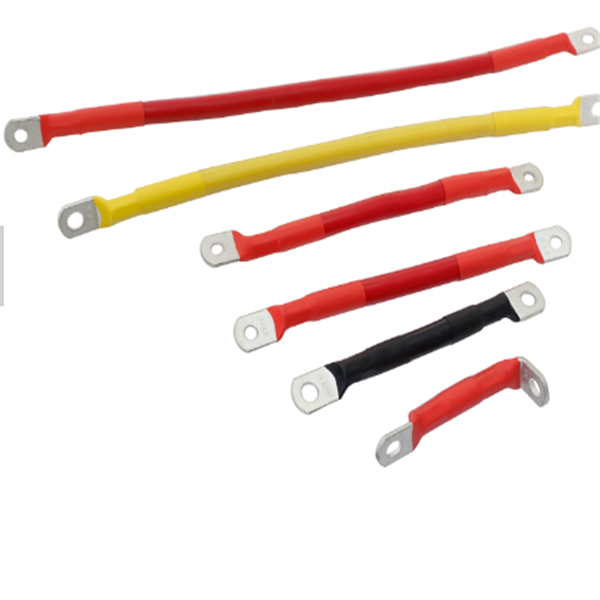

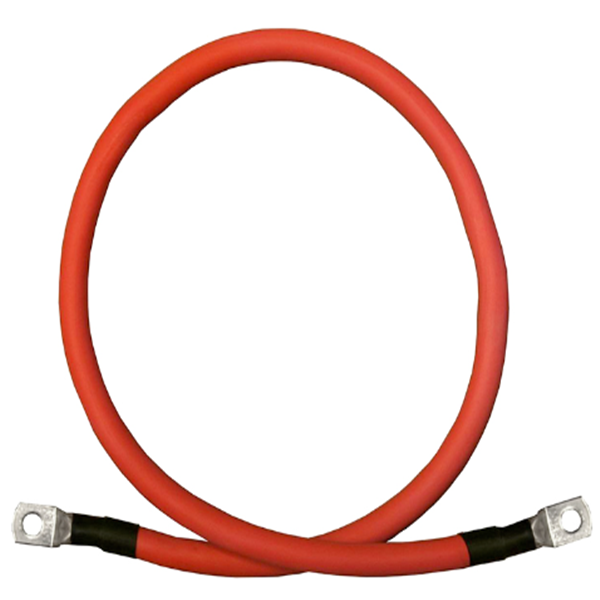

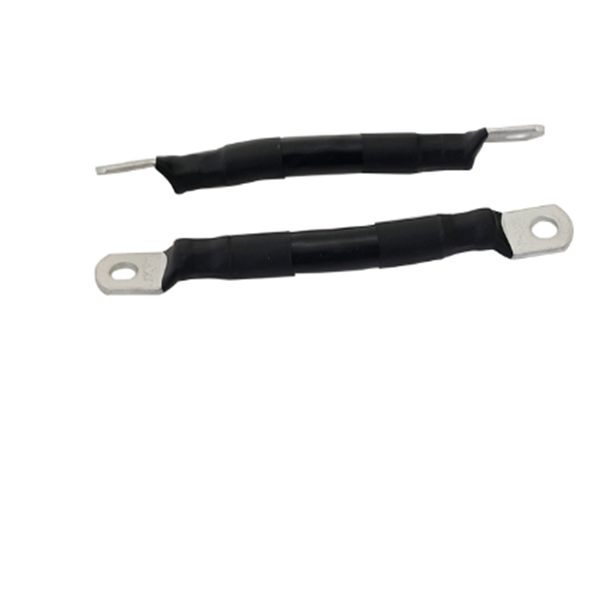

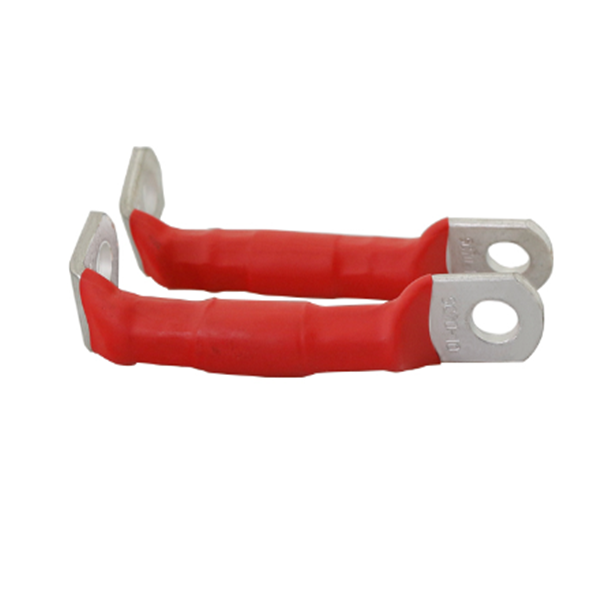

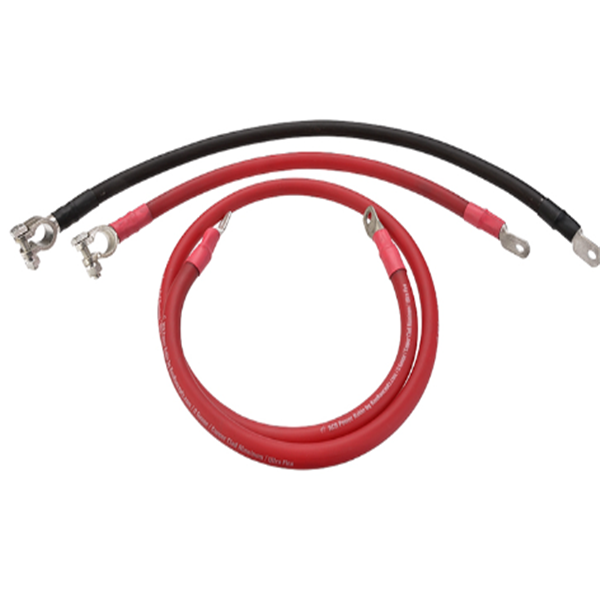

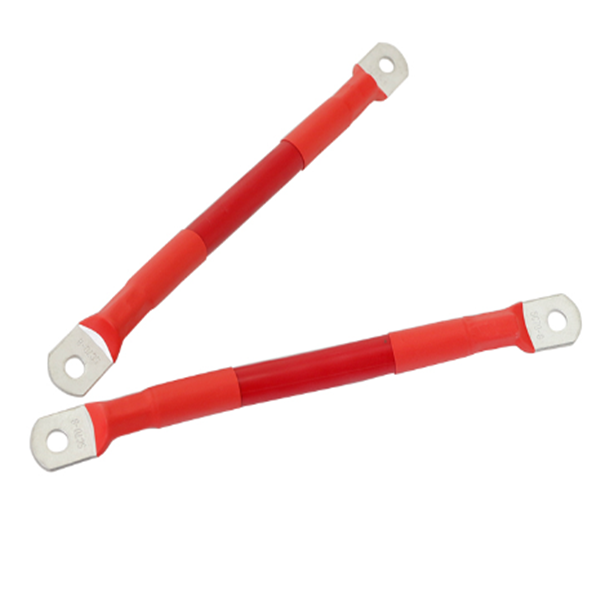

Battery Inverter Cables 6AWG 16mm2 Cable Terminal Kit Copper Solar Wire With Lugs

Battery Inverter Cables is a highly flexible cable specially designed for connecting photovoltaic solar systems. It has obtained multiple international certifications such as TUV/UL/IEC/CE/RETIE and complies with UL4703, IEC62930, and EN50618/CPR standards. It is suitable for many different solar power fields such as large-scale solar power stations, rooftop solar power stations, and water-surface floating power stations. This versatile solar cable is designed to meet the different needs of the solar industry. It is suitable for various harsh indoor and outdoor environments such as roofs, deserts, lakes, seasides, and mountains (climates with high temperatures, high humidity, and high salt content). Stable and good connection performance ensures the long-term safe operation of the photovoltaic system, effectively reducing the failure rate and later operation costs of the photovoltaic system. Get your PV installations up and running efficiently and safely. Achieving sustainable and successful PV profitability.

Specification Of Battery Inverter Cables

Item	Battery Inverter Cables 6AWG 16mm2 Cable Terminal Kit Copper Solar Wire With Lugs
Insulation material	PPO/PC
Rated Voltage	TUV1500V/UL1500V
Rated current-2.5mm²	35A (14AWG)
Rated current-4mm²	40A (12AWG)
Rated Current-6mm²	45A (10AWG)
Test voltage	6KV(50Hz,1Min)
Contact material	copper, tin-plated
Contact resistance	less than 0.35 mΩ
Degree of protection	IP68
Ambient temperature	-40℃ up to +120℃
Certification	IEC62852 /UL6703
