Aluminum alloy conductor Solar PV DC CablePopular

aluminum alloy conductor EN 50618 H1Z2Z2-K Solar DC Cable 1500V

1. High resistance against UV ,ozone and hydrolyzation 2. High temperature resistance ,materials will not melt or flow 3. Flexibility under cold conditions 4. Good flexibility and easy to install 5. All materials comply with ROHS&REACH

Contact Us
Application
Solar cables are used in a wide range of photovoltaic systems, including utility-scale solar farms, commercial and industrial rooftops, off-grid power stations, and mobile energy setups. They ensure safe and stable power transmission in both fixed and flexible installations, making them essential for long-term performance in harsh outdoor environments.

Structure

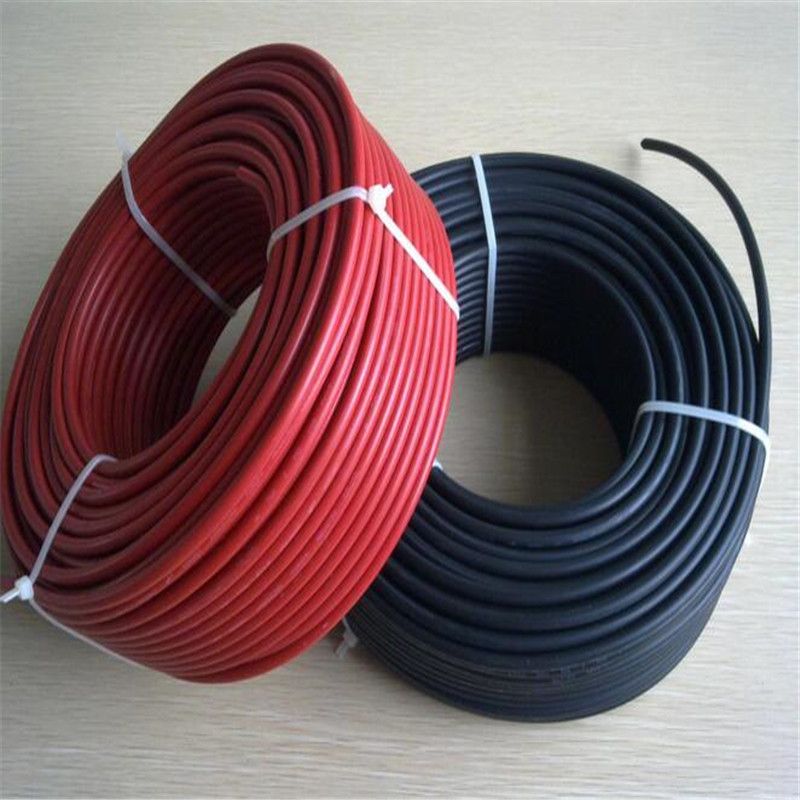

Conductor: Aluminum Alloy Insulation: Low-smoke, halogen-free, flame-retardant irradiated polyolefin Outer Sheath: Low-smoke, halogen-free, flame-retardant irradiated polyolefin Sheath Color: Black/Red
Characteristic
Rated voltage
DC 1.5KV / AC 0.6/1KV
Test voltage
6000V
Operating temperature
-40℃~125℃
Short circuit temperature
280℃ 5s
Bending radius
D＜8mm 4D; D≥8mm 6D
Service life
≥25 Years
Standard
2PfG 2642/11.17
Certification
TUV/EN/UL/CE
Aluminum alloy conductor Solar PV DC Cable 1500V
Construction：
Cross Section (mm²)
Conductor ( No./mm)
Insulation Thickness(mm)
Jacket Thickness (mm)
Cable Diameter (mm)
Conductor Resistance at 20℃(Ω/km)
Weight of Cable (KG/KM)
2.5
34/0.2
0.7
0.8
5.3
≤13.20
32
4
56/0.3
0.7
0.8
5.8
≤8.10
42
6
84/0.3
0.7
0.8
6.3
≤5.05
51
10
78/0.4
0.8
0.8
7.5
≤3.08
75
16
119/0.4
0.9
0.9
9
≤1.91
108
25
189/0.4
1
1
10.7
≤1.20
157
35
266/0.4
1.1
1.1
12.2
≤0.868
207
50
371/0.4
1.2
1.2
14
≤0.641
276
70
342/0.5
1.2
1.2
15.9
≤0.443
365
95
456/0.5
1.3
1.3
18.1
≤0.320
476
120
589/0.5
1.3
1.3
19.6
≤0.253
572
150
722/0.5
1.4
1.4
21.7
≤0.206
702
185
888/0.5
1.6
1.6
24.2
≤0.164
870
240
1184/0.5
1.7
1.7
27.2
≤0.125
1115
300
1525/0.5
1.8
1.8
30
≤0.1000
1378
400
2013/0.5
2
2
34.1
≤0.0778
1791

Features
1. The Conductor Is Aluminum Alloy Conductor
① High Strength – Better tensile and bending resistance.
② Corrosion Resistant – Ideal for outdoor use.
③ Cost-Effective – Lower weight and price than copper.


2. The Insulation and Sheath Are Made of Low-smoke Halogen-free Flame-retardant Material with a Temperature Resistance of 125℃
① High heat tolerance.
② Fire-safe insulation.

3. Insulation and Sheath Materials Feature Heat Shrinkage
① Secures cable safety.

4. The Insulation and Sheath Materials Endure Cold
① Reliable in -40℃ to 125℃.
② Resists breaking.

5. The Cable Defies Acid and Alkali Water
① No rust, steady performance.
② Chemical-resistant.

6. Premium UV Resistance
① 25-year lifespan.
② Elongation at break ≤50%.

Certification
Our solar cables have obtained multiple international certifications, including TUV, EN, UL, CE and CQC, ensuring compliance with various market regulations worldwide. These certifications attest to the durability, efficiency, and long-term stability of our cables, making them suitable for various photovoltaic applications, from residential solar panels to large-scale solar farms.

Packing
The regular packaging includes rolls of 100 meters, 200 meters, 500 meters, 1000 meters, and 3000 meters. Customers can choose the most suitable packaging size based on their project requirements.
