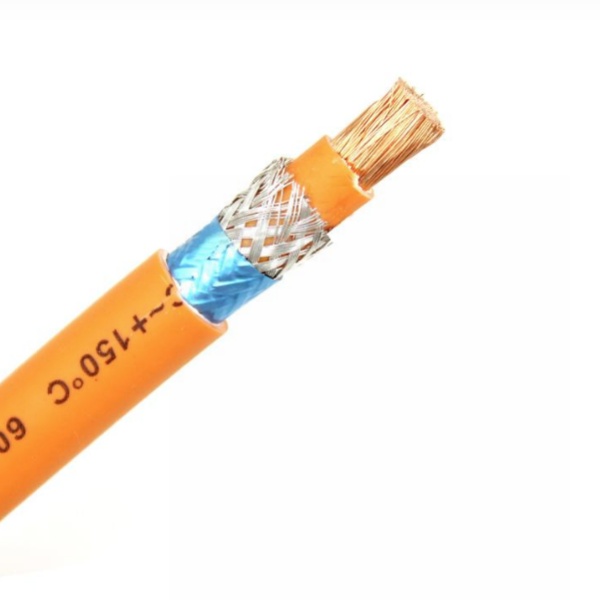

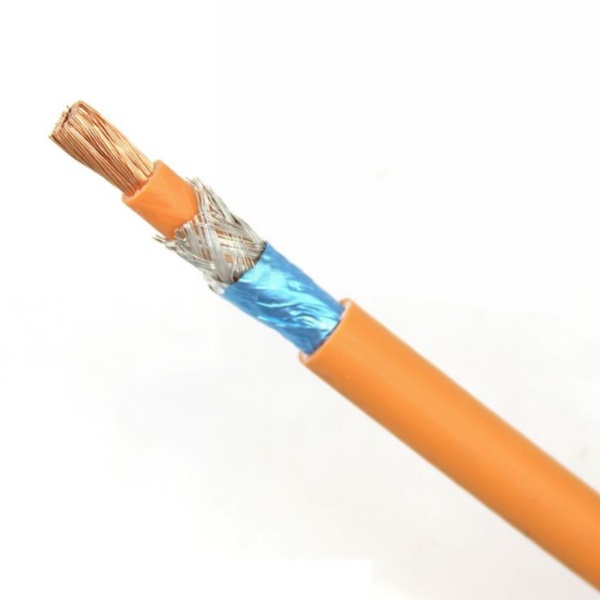

Silicone-insulated high-voltage (HV) cable 50mm Connection of HV batteries and electric engines (max. 600 V AC / 1,000 V DC)
High Voltage Auto Electric Vehicle Cable - EV | |
Core | 50mm² Single Core |

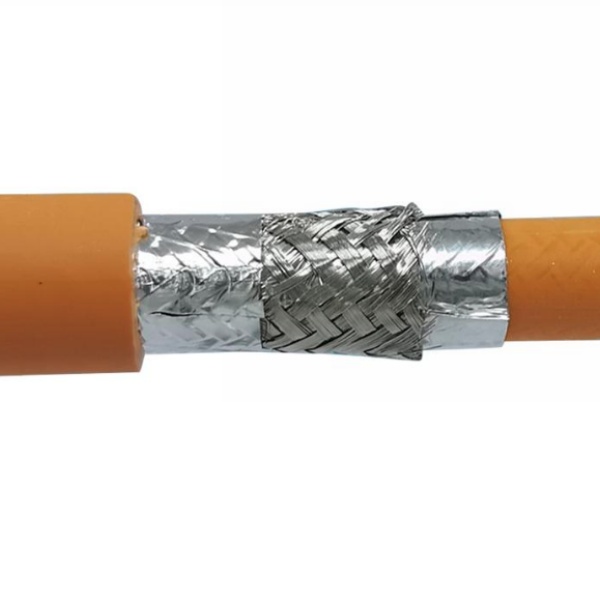

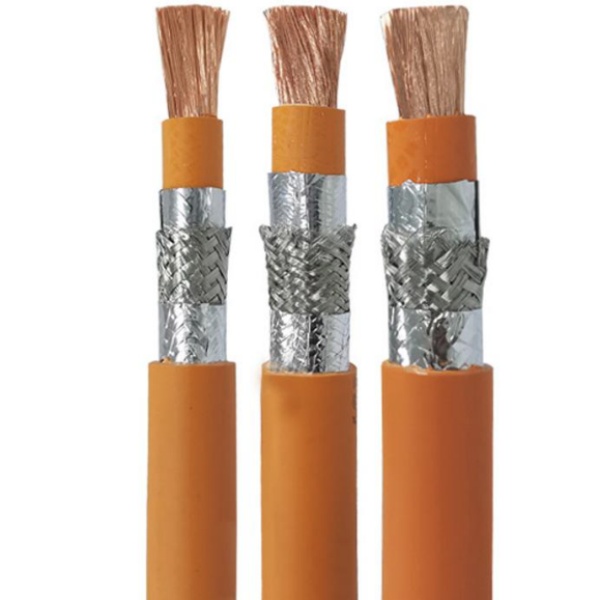

Material | Tinned copper screening braid and ALU-PET foiled shielding fro excellent EMC performance |
Voltage | Max 600V AC / 1000V DC |
Temperatures | -40°C to +180°C with excursions upto 205°C |
Conductor | 1600/0.21mm |
Maximum Overall Diameter | 15.8mm (±0.6mm) |
Model | Spec (mm2) | Core ID (mm) | Outer Diameter (mm) | Conductor Spec. |
EVRP EV Car High Voltage Shielded Cable | 2.5 | 3.6 | 6 | 80/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 4 | 4.4 | 6.8 | 120/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 6 | 5.2 | 7.6 | 190/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 10 | 6.5 | 9.2 | 318/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 16 | 8 | 10.8 | 510/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 25 | 10 | 13.2 | 795/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 35 | 11 | 14.5 | 1114/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 50 | 13 | 16.5 | 1591/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 70 | 15 | 19 | 2227/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 95 | 17.3 | 21.6 | 3022/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 120 | 19.5 | 23.2 | 3818/0.2AS |
