Aluminum alloy conductor Solar PV DC CablePremium

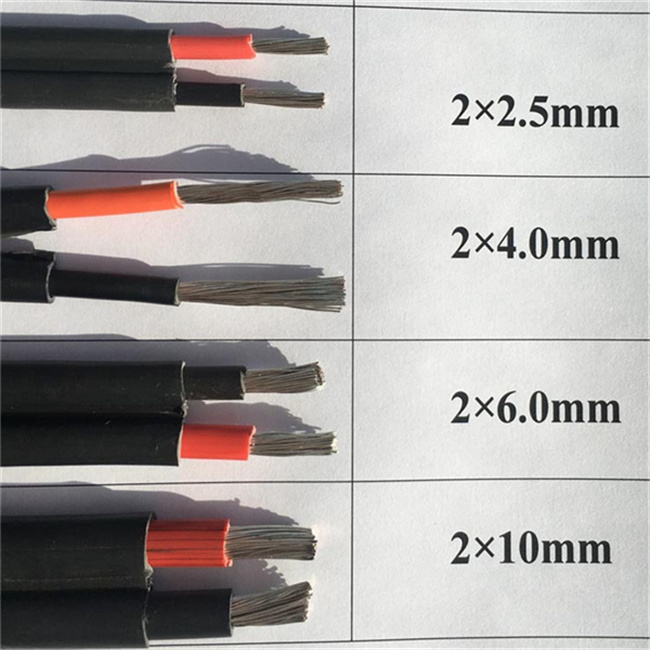

2core 10mm2,16mm2,25mm2, Aluminum Alloy Conductor 1.5kV Solar PV DC Cable

1. E- beam cross-linked compounds 2. High resistance against UV ,ozone and hydrolyzation 3. High temperature resistance , materials will not melt or flow 4. Flexibility under cold conditions 5. Lighter weight, making it easier to operate and install 6. Applicable to all common connectors

Contact Us
Aluminum Alloy Solar Cable
Aluminum Alloy Solar Cable Weight Reduction and Cost Reduction: Compared with copper-core photovoltaic cables, under the substitution of the same electrical conditions, the weight of the cable can be reduced by 15%, and the material cost can be reduced by about 40%.

Product Model: PV1500DC - AL
Product Standard: 2PG 2642 standard
Product Usage:
Series cables between photovoltaic modules on the DC side in the photovoltaic power generation system, parallel cables between strings and from strings to the DC distribution box (combiner box), and cables from the DC distribution box to the inverter.
Product Execution Standard:
2 PfG 2642/01.22 "Requirements for Aluminum Alloy Core Cables for Photovoltaic Systems".

Structure
Conductor: Aluminum Alloy Insulation: Low-smoke, halogen-free, flame-retardant irradiated polyolefin Outer Sheath: Low-smoke, halogen-free, flame-retardant irradiated polyolefin Sheath Color: Black/Red
Characteristic
Rated voltage
DC 1.5KV / AC 0.6/1KV
Test voltage
6000V
Operating temperature
-40℃~125℃
Short circuit temperature
280℃ 5s
Bending radius
D＜8mm 4D; D≥8mm 6D
Service life
≥25 Years
Standard
2PfG 2642/11.17
Certification
TUV/EN/UL/CE
Aluminum Alloy Conductor 1.5kV Solar PV DC Cable
Cross Section (mm²)
Conductor ( No./mm)
Insulation Thickness (mm)
Jacket Thickness (mm)
Cable Diameter (mm)
Conductor Resistance at 20℃(Ω/km)
2x10
0.8
11.6
0.8
13.2
3.08
2x16
0.9
13.6
0.9
15.4
1.91
2x25
1
16.4
1
18.4
1.2
2x35
1.1
18.8
1.1
21
0.868
2x50
1.2
21.8
1.2
24.2
0.641
2x70
1.2
25.2
1.2
27.6
0.443
2x95
1.3
28.6
1.3
31.2
0.32
2x120
1.3
31.6
1.3
34.2
0.253
2x150
1.4
35
1.4
37.8
0.206
2x185
1.6
38.8
1.6
42
0.164
2x240
1.7
43.8
1.7
47.2
0.125
2x300
1.8
48.6
1.8
52.2
0.1
2x400
2
55
2
59
0.0788
Features
1. The Conductor Is Aluminum Alloy Conductor
① High Strength – Better tensile and bending resistance.
② Corrosion Resistant – Ideal for outdoor use.
③ Cost-Effective – Lower weight and price than copper.


2. The Insulation and Sheath Are Made of Low-smoke Halogen-free Flame-retardant Material with a Temperature Resistance of 125℃
① High heat tolerance.
② Fire-safe insulation.

3. Insulation and Sheath Materials Feature Heat Shrinkage
① Secures cable safety.

4. The Insulation and Sheath Materials Endure Cold
① Reliable in -40℃ to 125℃.
② Resists breaking.

5. The Cable Defies Acid and Alkali Water
① No rust, steady performance.
② Chemical-resistant.

6. Premium UV Resistance
① 25-year lifespan.
② Elongation at break ≤50%.


Certification
Our solar cables have obtained multiple international certifications, including TUV, EN, UL, CE and CQC, ensuring compliance with various market regulations worldwide. These certifications attest to the durability, efficiency, and long-term stability of our cables, making them suitable for various photovoltaic applications, from residential solar panels to large-scale solar farms.

Packing
The regular packaging includes rolls of 100 meters, 200 meters, 500 meters, 1000 meters, and 3000 meters. Customers can choose the most suitable packaging size based on their project requirements.
