Solar PV Connectors

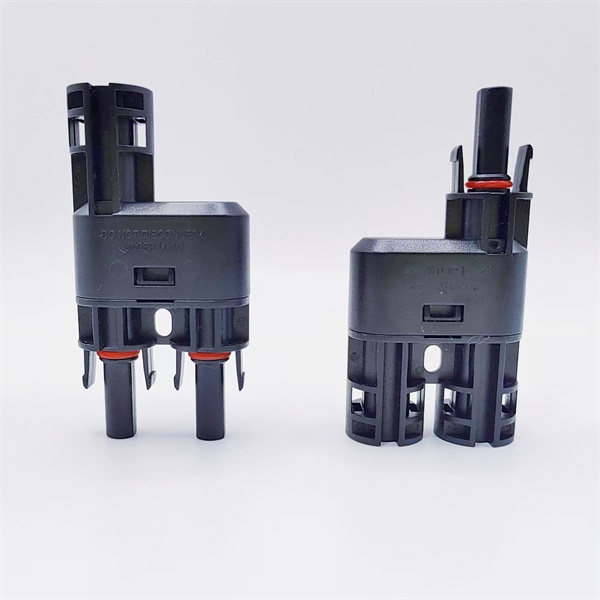

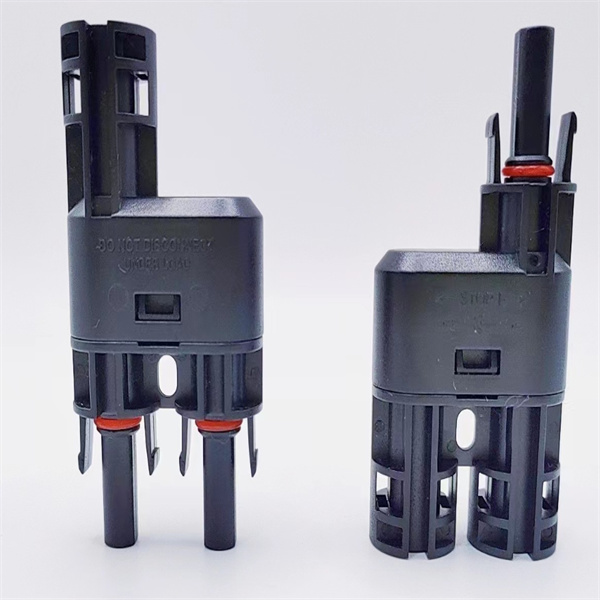

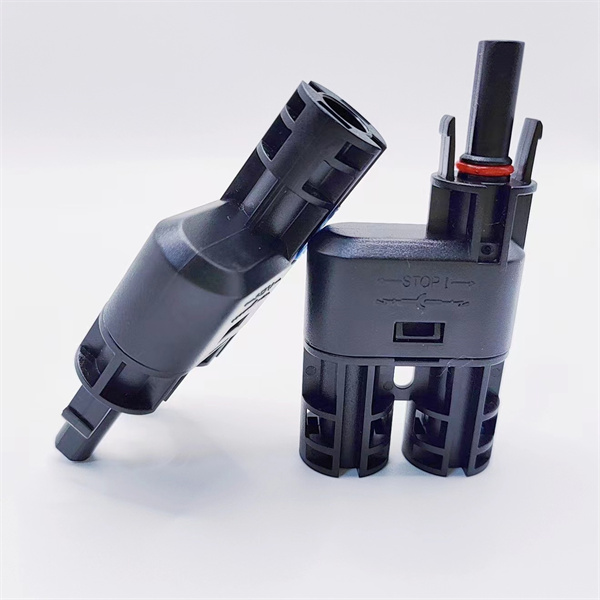

2 way T-branch MC4 connector 1500V 30A

The PV DC solar cable connector is used for solar system assemble,  the waterproof is IP68, it is a detachable, new type connector,  good stable specification, convenient to assemble.

Contact Us
2 way T-branch connector 1500V 30A 50A
Insulation material
PPE
Rated current
Input:20A,
Output:60A(With 10mm2 cable)
Rated voltage
1500VDC
Test voltage
8KV(50Hz,Imin)
Typical contact resistance
≤0.35mΩ
Contact material of solar connector
Copper, Tin, Plated
Degree of protection
IP68（1m,1H)
Safety degree
II
Flames class
UL94-V0
Upper limiting temperature
110°c
Suitable cable cross sections
2.5~10mm2 /14~8AWG
Ambient temperature range
-40°c until+85°c
[Material]:
PPO/PPE as insulation material and tinned pure copper conductor ensure a firm connection after crimping the conductor to the cable and presence a perfect operation under heavy load.

[High Carrying Capacity]:
1500V/1000V DC rated voltage, 50A rated current and IP68 water proof level perform well in PV system installation programs.

[IP68 Waterproof]:
the highest water and dust proof standard and not afraid of the rain or drip, can work under the 15m water in laboratory.

[Safety Design]:
Lock design to avoid connector loosing and prevent electric shock when mis-open under working state to provide safety assurance.
[Quality Reliability]:
12 Years manufacturing experience, factory outlet,TUV, CE and ISO certificates approve 25 years working time.
