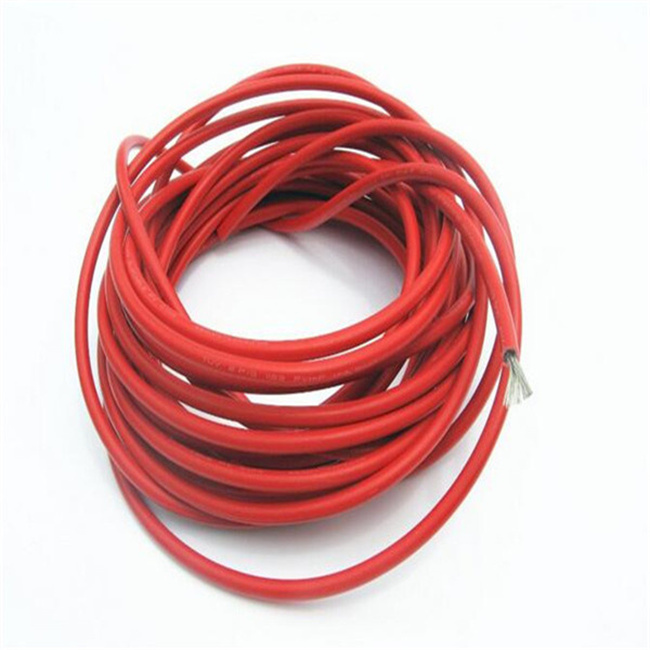

16mm2, 25mm2 TUV Certification 2PfG 1169 PV1-F Solar PV DC Cable 0.6/1.0kV

1.Construction: Tinned cooper, XLPE insulation, XLPE outer sheath. 2.Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC. 3.Halogen free and low smoke, Rohs standard. 4.UV resistance. 5.Temperature rating:-40Degree to 125Degree, cold resistance. 6.Certificate: TUV UL CCC CSA 7.Power cable for photovoltaic system.

Contact Us

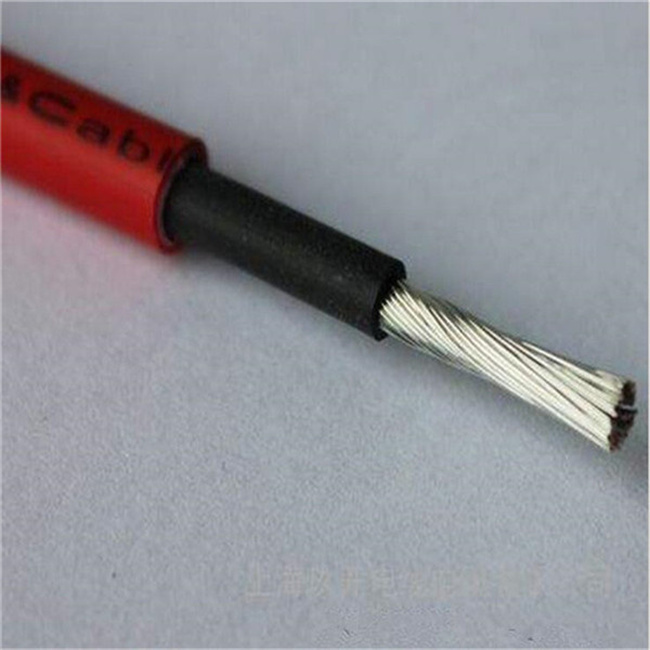

Cable design
Conductor: fine wire strands of tinned copper wires,according IEC 60228,Class 5
Insulation: irradiation cross-linkable LSZH flame retardant polyolefin compound
Outer jacket: irradiation cross-linkable LSZH flame retardant polyolefin compound resistance against water , UV resistant

Temperature range
Max,temperature at conductor  -40°C up to +120°C
Temperature range  -40°C up to +90°C
Electrical characteristics
Nominal voltage: AC 600/1000V,DC 900/1800V
AC-test-voltage:  6.5KV

Application
SOLAR CABLE used for interconnection wiring of grounded and ungrounded photovoltaic power systems

solar cable specifications
Core Conductor:
Tinned annealed copper(stranded core)
Popular Sizes:
1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2
Cable Conductor:
Stranded tinned annealed copper
Insulation:
XLPE
Jacket:
XLPE(black, red)
Nominal Volvatage:
Uo/U= 600/1000VAC, 1000/1800VDC
Test Voltage:
6500V, 50HZ, 5Min
Fire Performance:
IEC 60332-1, UL1581 VW-1
Bending Radius
Fixed installation>4X, Occasionally moved>5X
Single-Core Solar Cable
Cable Size (mm2)
Conductor Strand (mm)
Nominal insulation thickness (mm)
Nominal sheath thickness (mm)
Overall Dia (mm)
Max. Conductor Resis(20ºC) (Ω/Km)
1×2.5
49/0.25
0.8
0.8
5.4±0.3
8.21
1×4
56/0.30
0.8
0.9
6.2±0.3
5.09
1×6
84/0.30
0.8
0.9
6.8±0.3
3.39
1×10
84/0.40
1.0
1.0
9.0±0.3
1.95
1×16
126/0.40
1.0
1.0
10.0±0.3
1.24
1×25
196/0.40
1.2
1.2
12.2±0.5
0.795
1×35
276/0.40
1.2
1.2
13.6±0.5
0.565

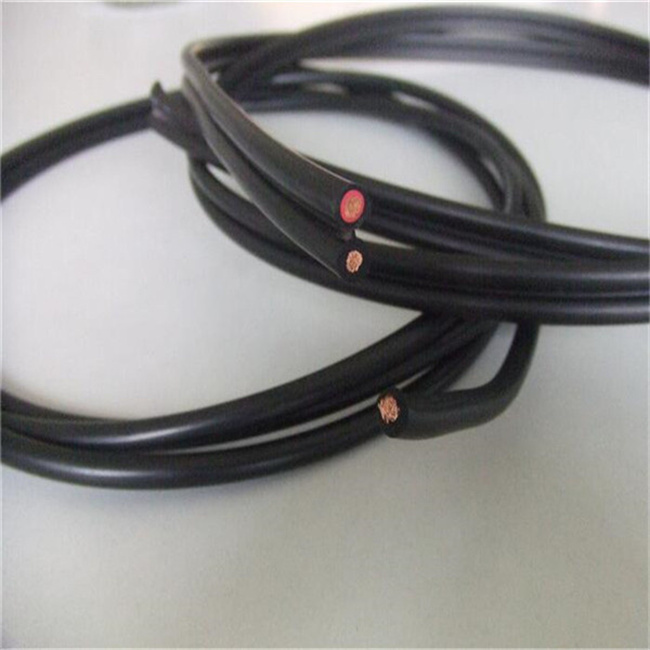

Twin Core Solar cable
Cable Size (mm2)
Conductor Strand (mm)
Nominal insulation thickness (mm)
Nominal sheath thickness (mm)
Overall Dia (mm)
Max. Conductor Resis(20ºC) (Ω/Km)
2×2.5
49/0.25
0.7
0.8
5.0±0.3×10.6±0.3
8.21
2×4
56/0.30
0.8
0.9
6.2±0.3×13.8±0.3
5.09
2×6
84/0.30
0.8
1.0
7.2±0.3×15.3±0.3
3.39
2×10
84/0.40
1.0
1.0
9.0±0.3×19.2±0.3
1.95


Benefits:
1.Reduction of flame propagation and of toxic combustion gases in the event of fire
2.Robust against mechanical impacts
3.For outdoor applications
4.Service Life: Expected life span ≥25 years
